Services





UPS - AEC (Aditya)

Brand Name:
AEC (Aditya)
Current Ratings:
10 kVA -200 kVA.
TYPE:
ON LINE- Modular UPS, Rack Mounted UPS, Stand alone UPS, Industrial UPS with in built Isolation Transformer based.
Voltage:
320V- 440V on 100% Load.
Frequency:
50/60 Hz.
Selection:
3phase Input -3phase output, 3phase Input -1phase output..
Up Gradation:
Design flexibility Additional charging Module Possible to increase Load Capacity.
Designing:
FPGA (DSP) Double conversion technology, Active Power Factor Correction, Parallel Redundancy, Energy Saving Mode and IGBT based Technology.
Display:
Touch Screen LCD Display.







UPS (Uninterruptable Power Supply)

Brand Name:
Autometer Alliance Ltd (Pegasus), Microtek
Current Ratings:
10 kVA -6300 kVA.
TYPE:
ON LINE- Modular UPS, Rack Mounted UPS, Stand alone UPS, Industrial UPS with in built Isolation Transformer based.
Voltage:
320V- 480V on 100% Load.
Frequency:
50/60 Hz.
Selection:
3phase Input -3phase output, 3phase Input -1phase output..
Up Gradation:
Design flexibility Additional charging Module Possible to increase Load Capacity.
Designing:
FPGA (DSP) Double conversion technology, Active Power Factor Correction, Parallel Redundancy, Energy Saving Mode and IGBT based Technology.
Display:
Touch Screen LCD Display.









Wire & Cables

Brand Name:
Apar Cable, L&T, Orient, Anchor Panasonic, Ultracab Cable
Product Range:
Wires: AL / CU flexible Wires / Solar application wires- .75sqmm -50sqmm -Single Core, Multi core
Cables:
Aluminium/ Copper/ Solar Cable –PVC, XLPE- Single Core, Multi core.
Temperature Withstand Capacity:
105 °C
Ref Standard:
Confirming IS: 694









ELECTRIC FAN -(Ceiling Fan, Wall Fan, Pedestal Fan)


Brand Name:
Orient, Anchor Panasonic
Range:
900mm, 1200mm, 1400mm
Air Delivery:
140, 228, 260cmm
RPM:
: 400, 350, 300
Power Rating:
5star Ratings









MCB (Miniature Circuit Breaker)


Brand Name:
L&T, Schneider, Siemens
Current Ratings:
0.5A TO 125A
Version:
SP, DP, TP, FP, SPN, TPN, MCB ISOLATORS.
Type:
Thermal Magnetic - B-Curve –C-Curve, D-Curve.
Breaking Capacity:
6kA, 10kA, 15kA.
IS/IEC Standard:
60898-10 kA & IEC 60947-2 -15kA Curve.









(ACB-AIR CIRCUIT BREAKER)


Brand Name:
L&T, Schneider, Siemens
Current Rating:
400A - 6300A–With Three Frame Sizes.
Version:
3 Pole, 4 Pole
Type:
Manual & Electrically Operated, Fixed and Draw-out.
Breaking Capacity:
50kA, 65kA, 80kA, 100kA.
Conforms to Standards:
IS 60947-2 & IEC 60947-2.









Power Distribution Products - MCBs RCCBs RCBOs SPDs Distribution Boards



Brand Name:
L&T, Schneider, Siemens
Type:
SPN DBs, TPN DBs, PPI DBs, Vertical DBs, Flexi DBs, Plug & Socket.
Doors:
Single Door / Double Door/Glazed Door.
IP Protection:
IP-30, IP-43 & IP-54 for Double Door, CRCA Sheet- RAL9003, Powder coated.
Conforms to:
IS-8623-1&3, IEC-61439-1&3.









MODULAR PLATE SWITCHES



Brand Name:
L&T, Schneider, Siemens, Anchor Panasonic, Orient
Range:
white, Black, Blue, Red, Wooden Finish, Gold Finish. Metal Finish.
Current Ratings:
6A, 10A, 16A, 20A.
Type:
Thermo Plastic Material -VO Grade PVC, Urea Formal Dehydrate.
Standard:
as per IS standard.









Vacuum Circuit Breaker



Brand Name:
L&T, Schneider, Siemens
Current Ratings:
630A-3150A.
Version:
3pole
Type:
Spring Charged Motor Operated.
Voltage:
11kV /33kV.









BBT AEC (ADITYA)



Brand Name:
AEC (ADITYA)
Product Range:
400A-6300A
Range:
from 400A to 5000A (Aluminium); 400A to 6300A (Copper)
Operational voltage:
up to 1000V
Joint block with maintenance:
free Twin-headed shear off Nut.
Plug:
in box with Mechanical interlock & safety features A robust, safe and reliable solution
BBT INSULATION:
Class F.
Ingress protection:
up to IP-65
Certified for Seismic zone:
V compliance Fire resistance system

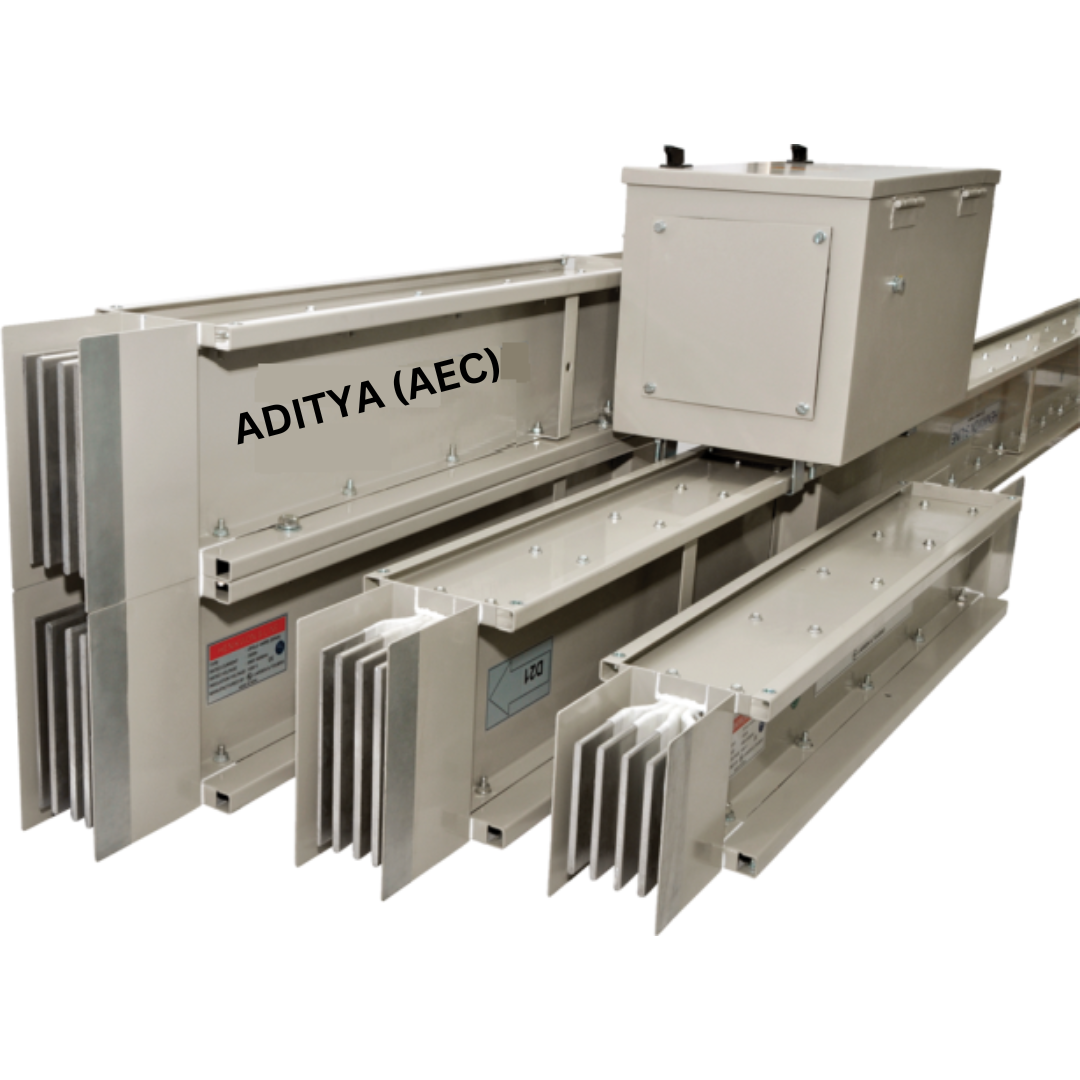

BUS BAR TRUNKING



Brand Name:
L&T, Schneider, Siemens
Product Range:
250A-6300A
Range:
from 250A to 5000A (Aluminium); 400A to 6300A (Copper)
Operational voltage:
up to 1000V
Joint block with maintenance:
free Twin-headed shear off Nut.
Plug:
in box with Mechanical interlock & safety features A robust, safe and reliable solution
UL certified Class:
F Insulation.
Ingress protection:
up to IP-66
Certified for Seismic zone:
V compliance Fire resistance system











MCCB (Moulded Case Circuit Breaker)



Brand Name:
L&T, Schneider, Siemens
Current Ratings:
20A TO 1250A
Version:
3POLE, 4POLE.
Type:
Thermal Magnetic / Microprocessor.
Breaking Capacity:
25kA/36kA/50kA/70kA/100kA.
IS/IEC Standard:
60947- Part 1&2 &EN 60947- Part 1
